Wednesday, November 30, 2016

The Fancy Italians

Much of my work has been influenced by the work of Italian immigrant luthiers who worked at the early part of the 20th Century. Initially I was drawn to the work of the Italians who worked at the Oscar Schmidt factory who built Stellas, Sovereigns and other brands. Later I became fascinated by the Italians who worked in small shops, either by themselves or with a few other people, at times with their family. These men came from Naples, Sicily, Campania and Tuscany, some had been trained as instrument makers while others were cabinet makers. They set up shops in New York's Little Italy, Italian Harlem, Brooklyn, and Staten Island,  and in Boston, Philadelphia, and Chicago.   Their work has been largely overlooked by collectors and historians. These luthiers and their instruments were the synthesis of Italian traditions and American progress. They largely built steel string flat tops and mandolins.  A few  who were active into the 1930's built arch top guitars and violins.  They were the men who preceded John D'Angelico, and some of them were very instrumental in his development.

Over the years I have collected as many of these Italian-American instruments as is possible. I have done restorations and repairs on quite a few, and I have done a fair amount of research on the history of the builders, looking through historic documents, and at times contacting their families.

This summer I built three guitars which were reminiscent of the higher end work of these builders. From fairly straight copies, to combining elements from different builders, to my own designs based on their work.  All of the guitars were built in a similar manner to the originals, with hide glue and  varnish finish.  All parts are made by hand, in house, including the purflings and pickguard materials.  All of the inlays are hand cut.

Nick Lucas with his Galiano.
#1. Fenezia six string- This guitar is based on the work of Raphael Ciani and Antonio Cerrito.  It is similar to the Galiano guitars played by Ernest Stoneman, Nick Lucas and Andy Sanella.  For the most part I borrowed elements from different guitars of Ciani and Cerrito, the body shape, bridge, pickguard, purfling and inlay patterns.  For a while I've wanted to make a headstock with a finial, something which was often used on Neapolitan mandolins, and which D'Angelico used on his archtops.  I had never seen something similar on a flat top guitar and figured it was overdue.  I have a Ciani mandolin in my collection with an ivory finial, so I modified the shape of the mandolin headstock for a slotted guitar peghead.  I carved a finial on my lathe out of cow bone rather than ivory.

The top is a very tight grained spruce, the back and sides are Indian rosewood.  Ebony fingerboard and mustache bridge.  The guitar is ladder braced with a 26 1/2" scale.  It is tuned down a full step from a regular guitar with light gauge strings.  The guitar has a tremendous sound.  It's very powerful and resonant.

 #2. Fenezia 12 string- This instrument was a collaborative work with my customer.  It was influenced by Ciani and Cerrito and also by Giovanni Favilla among others. It  is a big bodied 12 string with a 26 1/2" scale, tuned down to B.  The top is very old German spruce, the back and sides are Tasmanian blackwood, the fingerboard and robust mustache bridge are ebony.  It has a very warm and rich tone and is a joy to play. I also made a hardshell case for the guitar.

#3 Angie six string- This guitar was largely my own design, it was influenced by Rocco Mango, Phillip Interdonati, and the DeLuccia family.   Interdonati and the DeLuccia's made some of the finest instruments of all the Italians.  Interdonati's instruments are extremely artistic and are a glory to behold at all angles. The DeLuccia family worked in Philadelphia and were more influenced by Martin than any of the other Italian builders.  Their instruments are very well made and tasteful. This guitar is an X braced 000 with a very tight grained spruce top and mahogany which came from an old bar. The fingerboard is Brazilian rosewood and the bridge is ebony.  The scale is 25 3/4".  I used a red and green herringbone which I made a few years back.  Martin used a similar purfling in the 1890s and I thought it gave an appropriate nod to the Italian flag.  This guitar is exceptionally rich and elegant in tone.

Saturday, March 26, 2016

Making a Case for Making a Case

 Guitar cases are an essential commodity for a guitar builder.  Standard size cases can be purchased fairly easily, for a reasonable price.  If you make an instrument that doesn't fit into a standard case, your options are to have a case custom made, or to retrofit an over sized case.  I have a few models that don't fit into standard size cases and require custom cases.  I've had custom cases made by a variety of manufacturers and for one reason or another have not been satisfied, either with the case or with the service.  I've retrofitted some over sized cases but was not completely satisfied with the results.  One thing led to another and I started asking myself, "How hard can it be to make a case?"  It's been on my list of things to do for a while and I set a goal to make one by the end of our long Wisconsin winter.  I recently finished and my first case and it was a completely fulfilling experience.

During the golden age of guitar building there were several case manufacturers, Geib, Lifton and Harptone were a few who made beautifully crafted cases.  I have a few of these vintage cases which I've acquired with old instruments. I've always admired their fit and finish, and the fact that they are lightweight but still manage to offer good protection.

When I started building guitars, the Harptone company was still around and I ordered a few cases from them for my small bodied, long scale Angelina 12 string.  I found Harptone to be a pleasure to deal with.  I didn't have to wait long to get the cases that I ordered, and their price was very reasonable.  Not long after that Harptone was bought out by a large case manufacturer.  The next time I had to order some custom cases I ordered them from this company.  I found this to be the antithesis of my Harptone experience.  The price had increased significantly, though it was still reasonable, but the wait was a killer.  Initially I was told that there would be a six week wait, which  is reasonable.  After I hadn't heard from them in six weeks, I waited a couple weeks and called.  I was told that they had a stitching machine down and it would be two more weeks.  Two weeks came and went and still no cases.  I'll spare you all the details, but it took about six months to get my cases.  Maybe it was the former project manager in me, but I have very little patience for suppliers who can't accurately predict their lead time.  Also, at the time I was starting out as a guitar builder and really needed to get paid for the guitars I had built for my customers.  Without a case I couldn't get paid.  The whole thing was also making me look bad, each time I was told "two weeks"by the case company,  I would tell this to the customer, only to have both of our hopes dashed two weeks later.  I knew the reality of the situation was that my 2-3 custom cases were being kicked down the line for a major manufacturers 100- 1000 case order.  I fell for this twice.  The second time I ended up shipping the guitars in over sized cases, then when the custom cases came in, I shipped them to the customer.  So, in the end, I had to buy two cases and pay for twice the shipping.  I considered this a horrible option and decided that I would never order a custom case from this company again.

My next step was to move to a company headquartered in my great state of Wisconsin.  I ordered a few cases and the lead time and price were both reasonable.  I found their service to be very good and I remarked that when the cases were done, I'd like to pick them up and check out the facility.  I was then told that the cases were not built in Wisconsin, that they were made in Costa Rica.  I was a little disappointed about that as I like to buy things that are made in the U.S. when possible.  Nevertheless, the cases did come on time and they were well made.  In the end though I found them to be on the large side and a little clunky.  The size of these cases, and an incident where the crushed velvet interior imprinted into a varnish finish eventually caused me to explore the next option.

My last move was to start retrofitting over sized dreadnought cases.  I would use a 4 1/2" block of foam, cut it to the shape of the interior of the case, cut out the shape of the guitar body, then cover it with material that best matched the interior of the case.  This option didn't require much lead time and was reasonable in terms of price, but I wasn't completely happy with it.  It did give me a taste of upholstering, and started the wheels turning about making a case for myself.  I put it on the list of things to learn, along with making my own tuning machines (though infinitely more approachable), and set the goal to make a case over the winter.

Another thing has happened in the case world that gave me an extra kick.  Cases that I was getting stock were getting harder to acquire.  For years I've ordered Canadian made cases from a local distributor.  Recently the Canadian company was acquired by the same large American company who acquired Harptone years ago and who I had such difficulties with.  My local distributor was no longer able to get these cases, prices increased by 30%, and I was told that some case sizes, which I had been getting for years, were no longer available.  My only option for these sizes was Chinese made cases.  I tried the Chinese cases years ago but stopped when a customer informed me that all of the latches were coming off his Chinese case because the material the rivets were made of was too soft to hold the latches in place.

As winter was waning I realized I had to get on the project.  I have a couple orders for guitars that will require custom cases and would like to send them out in something I was satisfied with.  It was time to take matters into my own hands.

One of the bonuses of making my own case was that I could make them any way I liked.  As with my guitars I looked toward the past, back to the old Geib and Lifton cases that I had in my collection.  I started to draw up a plan for the case I wanted to build.

Case mold with bent ribs
The next step was to figure out how I was going to build it.  For this I looked at the old cases, looking at places where the fabric had worn away, trying to decipher what the materials were and trying to envision the process.  I spoke with some woodworker friends about  bending veneers and plywood.  I looked into getting 1/16" veneers, which is what was used on the old cases, but they are not easy to come by and the ones I did see were quite pricey.  I looked into bending plywood, but didn't find it to be very stable.  I settled on 1/8" Baltic birch plywood, which was readily available, had adequate flexibility, but also had the rigidity I was looking for.  I found that it was used by skateboard makers and also experimental aircraft builders, and  that it bent like a dream with heat.  Laminating two layers of the 1/8" ply would give me a finished thickness of 1/4".  It would give me a nicely protective shell.

Now that I had figured out my material for the shell, I had to figure out my process for making it.  I did some searching on the web and came up with a website by Steve Kirtley, which is dedicated to vintage musical instrument cases.  In addition to providing histories of the companies, Steve provides examples of case repair and outlines how to make vintage inspired case.  The arching of the top of the case was especially puzzling and intimidating to me.  Initially I was thinking of using a vacuum press for this step, but a skateboard making friend assured me that a vacuum press would not provide adequate pressure, that I had to use a male and female mold with lots of clamping pressure.  Steve shows his process for doing this on his site, making a mold for arching the top, using particle board for the positive part of the shape, and using plaster or Paris to cast the negative part of the mold.  The thing I really love about this process is that it does not require any fancy woodworking equipment, other than a bunch of large clamps.  It is relatively low tech, but beautiful, from a craft perspective.
Die for arching the case top

Clamping the arch into
the case top.

Gluing the shell together on the go bar deck.

Finished shell

I contacted Steve Kirtley as I was working on the shell.  I had many questions for him the further I dug into the project.  I was wondering about materials, hardware, process etc.  Steve suggested that I post the questions on a Facebook group that he started, Vintage Musical Instrument Cases, and suggested that the open forum could help me through the process.  As things came up, and as I completed different stages of the case, I  posted photos and questions on the group and everyone was supportive and helpful.  It was a great resource for me and I thank everyone there for their input.  I especially thank Steve for being open with information and resources.

Finished case exterior
As I got the shell together, my thoughts started moving on to the upholstery.  I had a little experience from relining cases, but in the scheme of things it didn't add up to much.  For the exterior, I was looking for something that matched the material on the old cases.  I ended up getting some upholstery material from a local fabric store.  Initially I tried to adhere the material using contact cement, but I couldn't take the fumes and it was causing my material to curl up into itself.  On Steve's advice, I switched to using a water based contact cement.  The fumes from this were minimal and it really worked great for adhering the material to the shell.  In hindsight, and on Steve's suggestion, I will use Tolex material in the future.  It's made for this application and has several advantages over standard upholstery material.

Butterfly hinge

Old style latch
After I had completed the exterior I had to find the hardware.  I found some nice butterfly hinges on ebay, similar enough to the old style ones.  I opted for more traditional latches over the drawbolts which are used on more modern cases.  These were a bit of a challenge to find, but I found some that work well enough from G&G Quality cases, who manufactures cases in Los Angeles for Fender.  G&G also has nice handles for a good price.  They're not the cool old style banana handles, but they are good looking leather handles cost half the price of a banana handle.  It worked well enough for my prototype.  All of the hardware is attached with split rivets.  There is a definite learning curve on the proper way to use a split rivet.  Again, I turned to Steve Kirtley's site, which offers a nice illustration of how to use them.

Finished case interior.

For the interior of the case I opted for purple flannel, which was the material used on the majority of vintage cases I have.  I really like the look of the purple, and prefer flannel over crushed velvet, which I've had some problems with in the past, imprinting into my varnish finishes. An upholsterer friend warned me that flannel was going to be a challenge to work with, that it would show every crease and wrinkle.  He said this was the reason that most of the companies used crushed velvet or "fun fur", because these materials were much more forgiving than flannel.  I'm never one to back down in the face of a challenge, so I went with the purple flannel.  It was challenging to work with, but with the help of an iron and my wife, it was very doable.  There is certainly room for improvement, but I'm very glad that I used the flannel and will work to refine my technique on future cases.

So I have successfully finished my first case.  For me the process was nearly as satisfying as building a new guitar.  I really enjoyed deconstructing the old cases and figuring out ways to work through each challenge as it presented itself.  Overall I'm quite happy with the way that it turned out.  There is some definite room for improvement and I look forward to refining the process, and finding the best sources for material and hardware.  Economically it may not make the most sense in the world, at least at this point.  But, having ruled out the custom cases that are available, and as stock cases get harder to come by as companies further standardize, it makes more sense for a guy that doesn't make "standard" stuff, to make his own case.  I know of few guitar builders who are satisfied with the cases that are available to them, and I encourage them to give case making a try.  It's certainly not easy and requires much dedication and persistence, but in the end it is well worth the effort.

During this whole process I was reminded of a story the great archtop builder Bill Moll once told me.  He was growing frustrated with his case maker who he had worked with for years.  The lead time kept increasing on the cases and he was getting bumped for bigger customers.  He voiced his frustration to the case maker who's reply was, "If you don't like it, make your own cases."  Bill, not being a guy to back down to a challenge did just that.  He now makes some of the best cases in the business, for his guitars.


Monday, February 29, 2016

A Bone to Pick

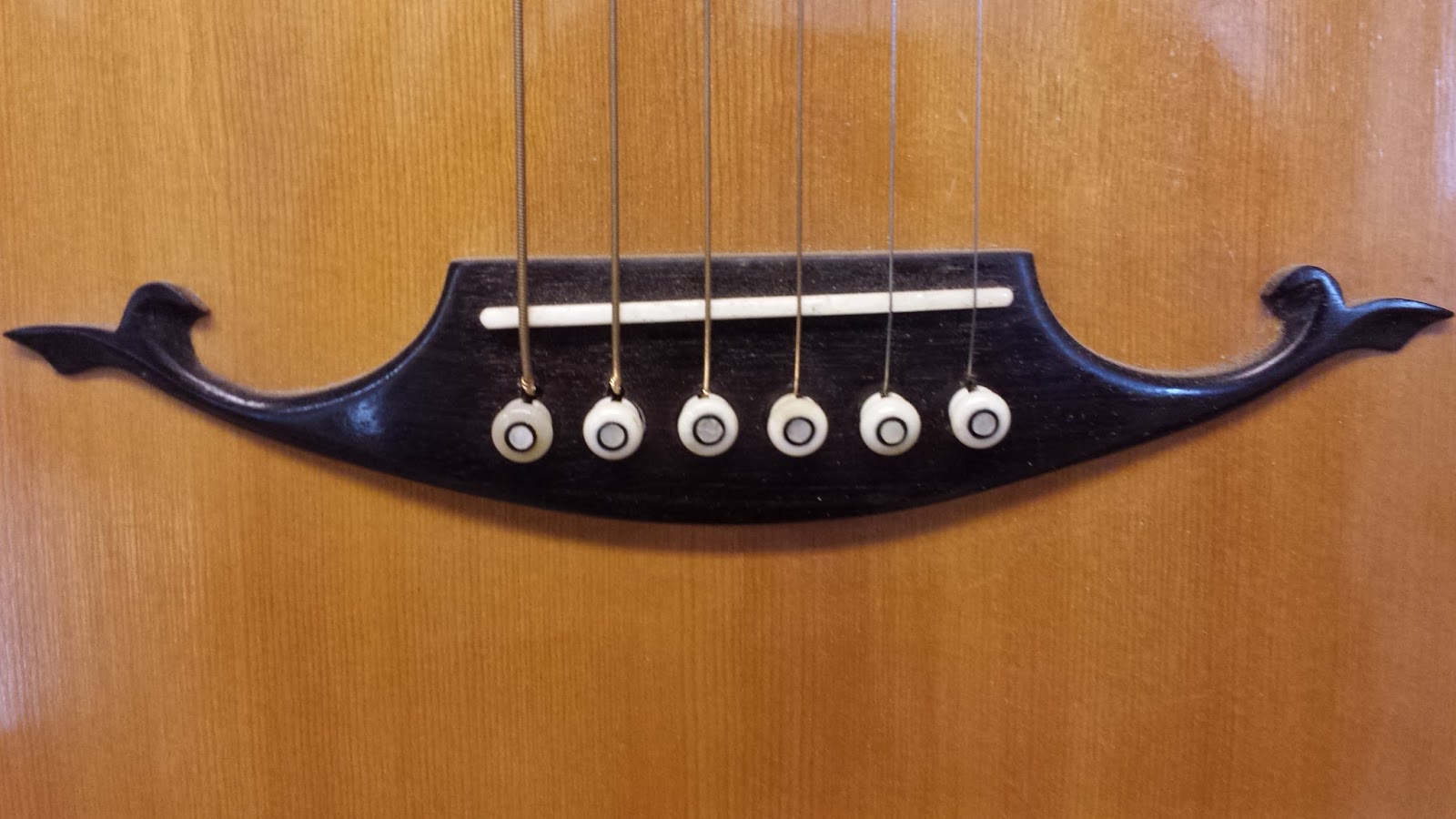

Bone saddle and bridge pins

Bone is an important but overlooked material used in guitars.  We use bone for the nuts and saddles, and sometimes bridge pins. The quality of the material and the fit make a big difference in the tone and playability of an instrument.  Bone blanks can be purchased from guitar suppliers, or they can be cut and shaped from bone itself.  Not all bone is equal and there are a few things you need to know before you make a switch from the purchasing blanks to using the raw material.  I'm going to point out a few of the things I've learned over the years.

I used to purchase bone blanks from suppliers.  Eventually I became dissatisfied with the quality of some of the blanks I was getting.  Sometimes the bone contained fillers, like chalk, other times there were cracks or fractures that weren't evident until I started carving.  Very frustrating when you've purchased faulty material which you can't return.  I also found that, when I ordered a blank that was supposed to be a certain thickness, they were often thinner than they were specified.  So, if I ordered a 3/32" saddle blank, which should have a thickness of .093", the blank was actually ..085", which mean that it was too loose of a fit.  A saddle needs to be snug in the slot in order to get the best tone, and to prevent a crack from developing in the front of the bridge, along the saddle slot.  As a result I started ordering oversized saddle blanks and thinning them down on the belt sander.  Finally, bone blanks are expensive, about $5 per nut or saddle blank ($10 per guitar).  When you're making and repairing a lot of guitar, those costs add up.  I don't mind spending money for quality material, but when I'm unsure about what I'm going to get, I mind spending money.  All of these things added up to me making a switch, from purchasing blanks to making my own from the raw material.

When I first made the switch, I robbed my dog of some of his old bones which he had stripped of any and all tasty tidbits and hidden in the yard.  After I had worked through that, I made a trip to the butcher and bought some nice thick bones (which the butcher sold as dog bones).  Then I had to figure out how to process them so that they were usable in guitar work.  The process is pretty easy and doesn't take all that long.  Here it is:

7 cow femur bones,cleaned and ready to be turned into blanks.

First, it is necessary to strip the bones of any meat, marrow, and bits that aren't bone. The knuckles or joints need to be removed from the bone before removing the marrow.  Most butchers will do this for you when you purchase the bone.  All the marrow and bits of meat can be set aside and used to make a great beef broth.  After you get as much as you can off the bones, boil them for 2 hours or so.  I use this water for broth and (after I've removed the bones) add all the other bits I removed earlier.  After removing the bones, I rinse them with hot water and scrape away any other bits that were clinging to the bone.  All of this material should come off easily at this point.  Sometimes I'll boil the bones in fresh water for another hour or so, to make sure they are completely free of grease and oil.  After boiling them for a second time, I remove them from the water and let them sit for a few days to air dry.

45 saddle and 35 nut blanks, + bigger pieces for bridge pins.

After the bones are dry, I go over them with nut and saddle templates and a pencil, figuring out the best way to saw them in order to get the most, good quality blanks.  Once I've penciled in my cutting lines, I cut up the bone on the bandsaw.  Finally I put all of the blanks in a container with white gas, which can be purchased at most hardware stores as fuel for old time camping stoves and lanterns.  I let the bone sit in the white gas for a week or two.  After that the blanks are ready to use.

I sand the blanks to thickness and shape them on my belt sander, with a vacuum attached.  A fresh 60 or 80 grit belt will make fairly quick work of  it.  I sand them as needed rather than sanding them all at once.  My friend Aviva  Steigmeyer developed a wonderfully simple, yet effective way to hold onto thin pieces of bone while your thinning them on the belt sander.  Take a piece of masking tape, about 2" long, pinch it in the middle so that part of the tape sticks to itself, creating a little handle, stick the remaining tape to the bone you're trying to thin.  Like this:

This is one of the best shop tricks I've ever learned and I'm always happy to pass it along.  Thanks Aviva!

Now I know that while I've described this as a fairly simple process, there are people who will roll their eyes and say, "There he goes again."  However, I'd like to break it down to simple math.  This is a process I do about every year and a half.  It provides me with enough material to last me that long.  For the current batch of blanks, I went to the butcher and  bought 7 cow femur bones for $24 (I'm not sure why he had 7 and not 8).  I spent 1/2 hour cleaning the bone before boiling it.  While it was boiling I was doing other work.  I spent 15 minutes cleaning it a little further.  I spent another 1/2 hour sawing the bone into rough blanks.  From the 7 bones which I purchased for $24, I sawed 45 saddle blanks 35 nut blanks, and still had 4 large sections leftover which I can use for nuts, saddles or bridge pins (not to mention a great pot of soup).  Saddle and nut blanks are usually between $4 to $5.  If I had purchased these blanks from a supplier, at $4 a blank, the cost would have been $320, and I couldn't be confident about the quality of the material, or that they were  thicknessed properly.  Personally, I'm willing to spend a little time to save the money and be assured of the quality.  I'd rather spend my money on wood.
